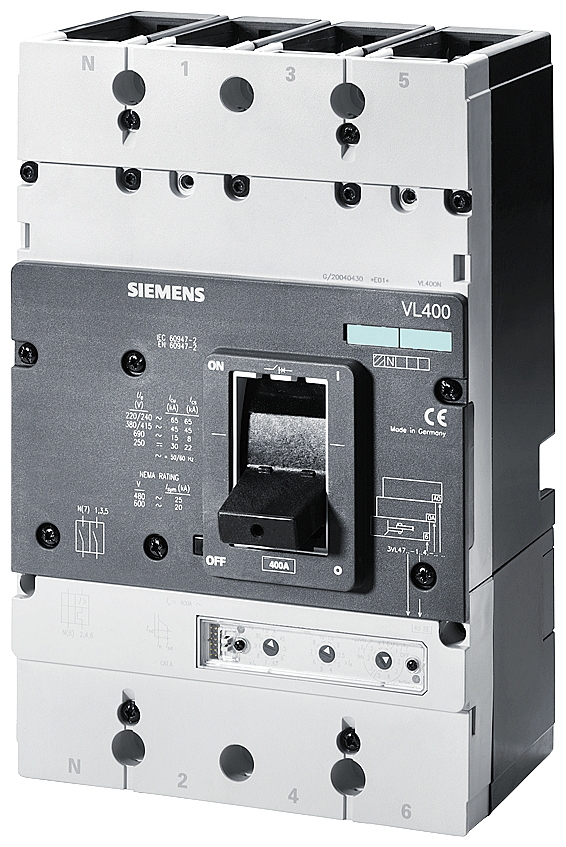

Interruptor automático VL400N poder de corte están (3VL4740-1MG36-0AA0)

13.182,62 IVA incluido

(*** En proceso de DESCATALOGACION ***) : INTERRUPTOR AUTOMATICO VL 400N PODER DE CORTE ESTANDAR ICU=55KA / 415 V AC 3 POLOS, PROTECC. DISTRIBUCION DISP. SOBREINTENSIDAD ETU22, LSIG 3 FASES/3 CONDUCTORES IN=400A, INT. ASIGNADA IR=160-400A, PROTEC. SOBREC. ISD=1,5HASTA10XIR, II=11XIN PROT. CORTOC ETU C/CONECTIVIDAD

Sin existencias

SKU: 3VL4740-1MG36-0AA0 Categoría:

Información adicional

Rated permanent current Iu

400.0

Number of auxiliary contacts as normally open contact

0

Motor drive optional

true

Motor drive integrated

false

Complete device with protection unit

true

Position of connection for main current circuit

Front side

Number of poles

3

With under voltage release

false

With switched-off indicator

false

Number of auxiliary contacts as change-over contact

0

Number of auxiliary contacts as normally closed contact

0

Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

55.0

DIN rail (top hat rail) mounting optional

true

Suitable for DIN rail (top hat rail) mounting

true

Device construction

Einbaugerät Festeinbautechnik

Type of electrical connection of main circuit

Screw connection

Integrated earth fault protection

true

Adjustment range undelayed short-circuit release

4400

Adjustment range short-term delayed short-circuit release

600

Overload release current setting

160

Degree of protection (IP)

IP20
